Name: Hexagon nuts
SKU: 0

ttt544753@gmail.com

+86 18851350790

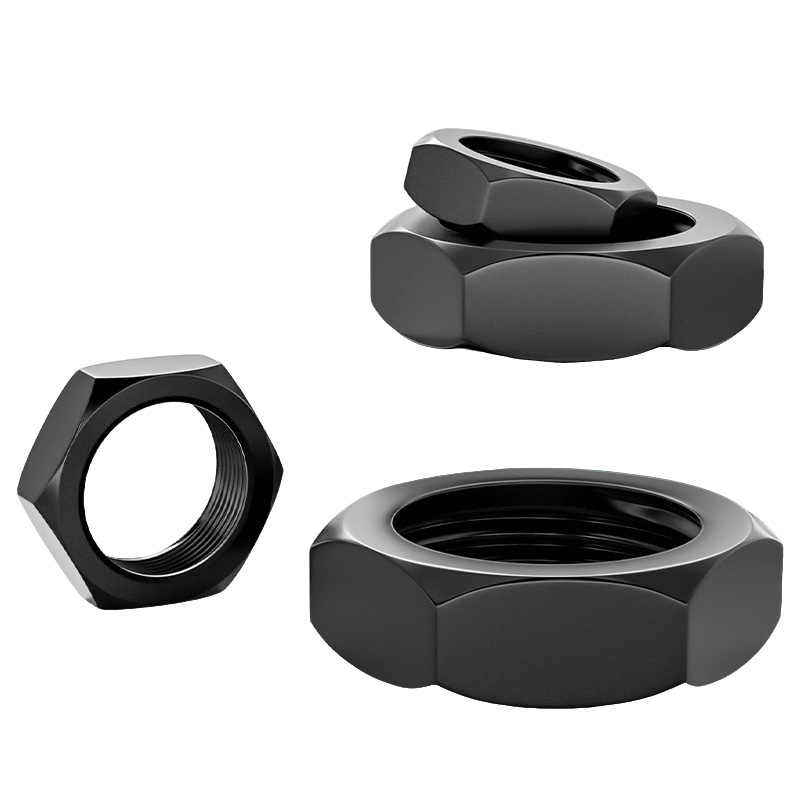

Hexagon nuts

PRODUCT

MESSAGE

If you have any questions, please contact us and we will contact you as soon as possible.

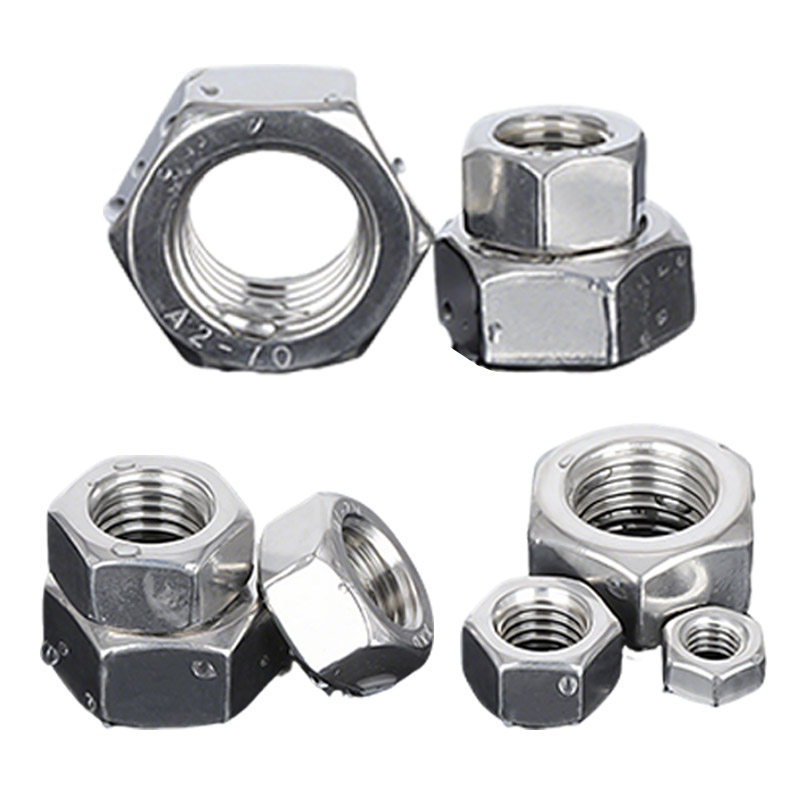

Hexagon nuts

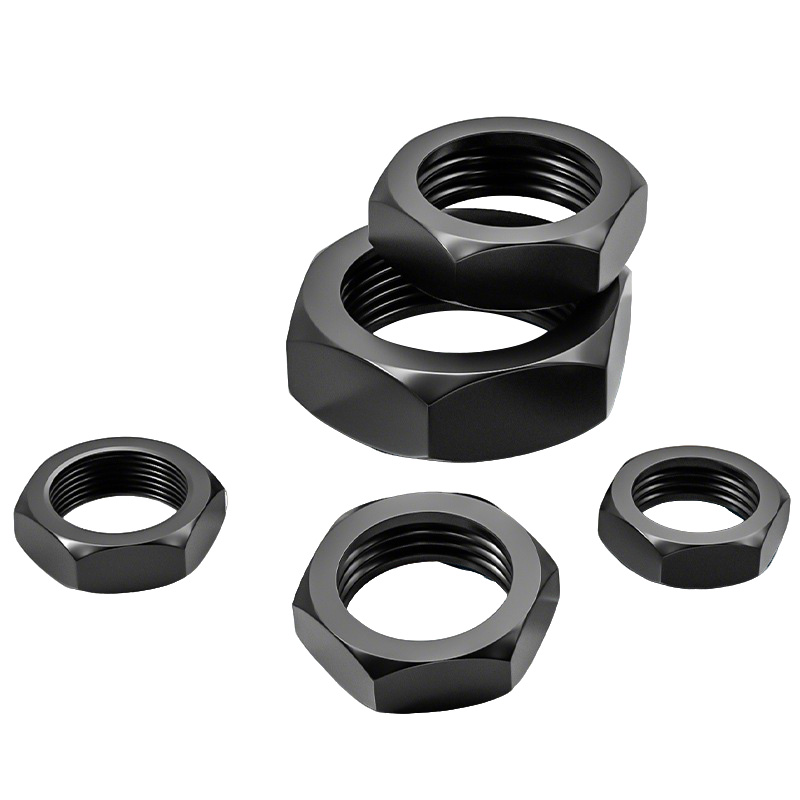

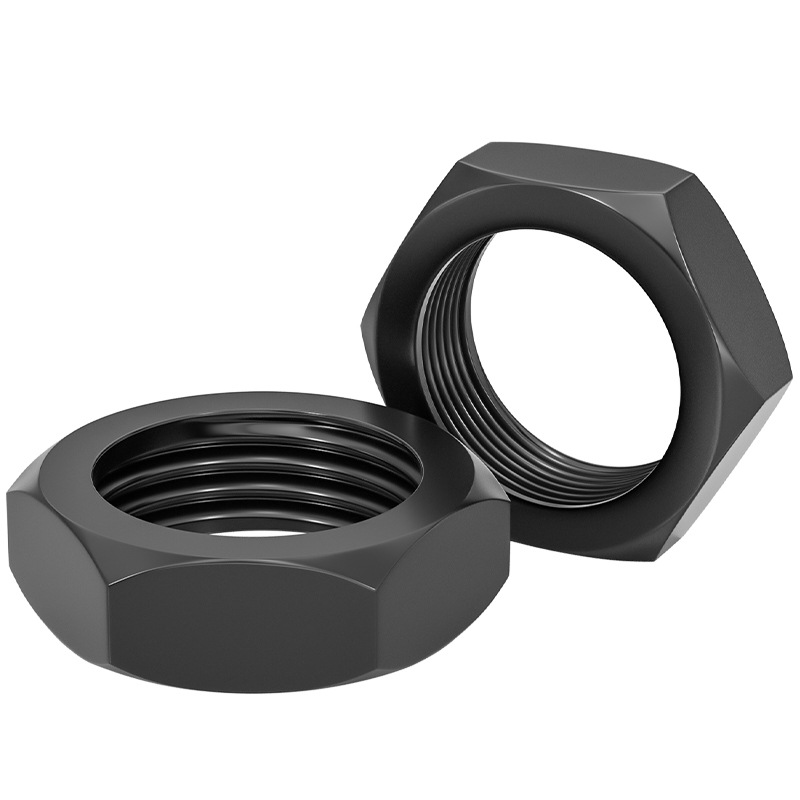

・Hexagon thin nuts

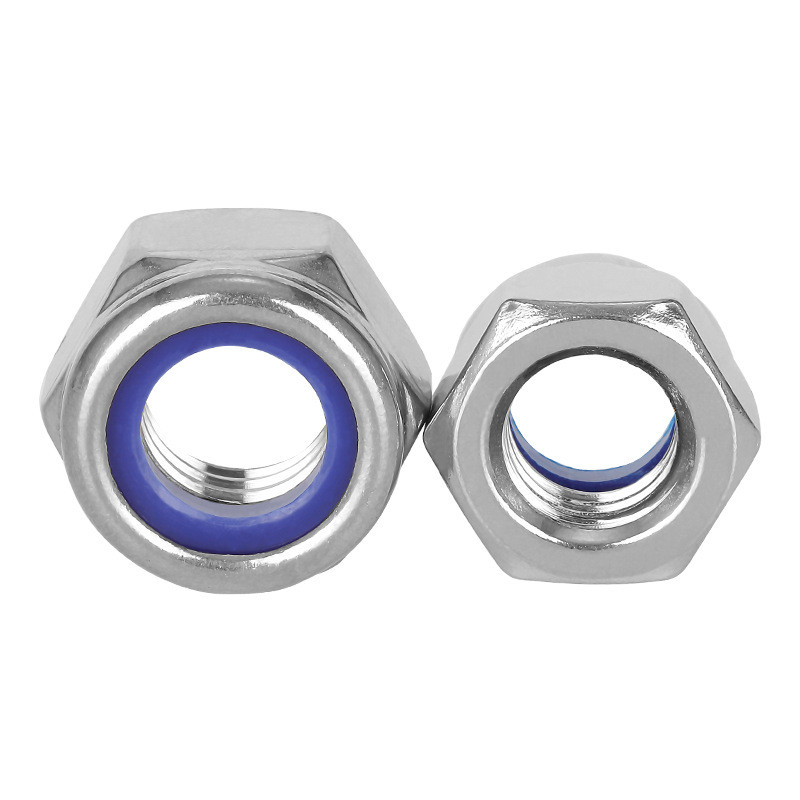

・nylon insert lock nut

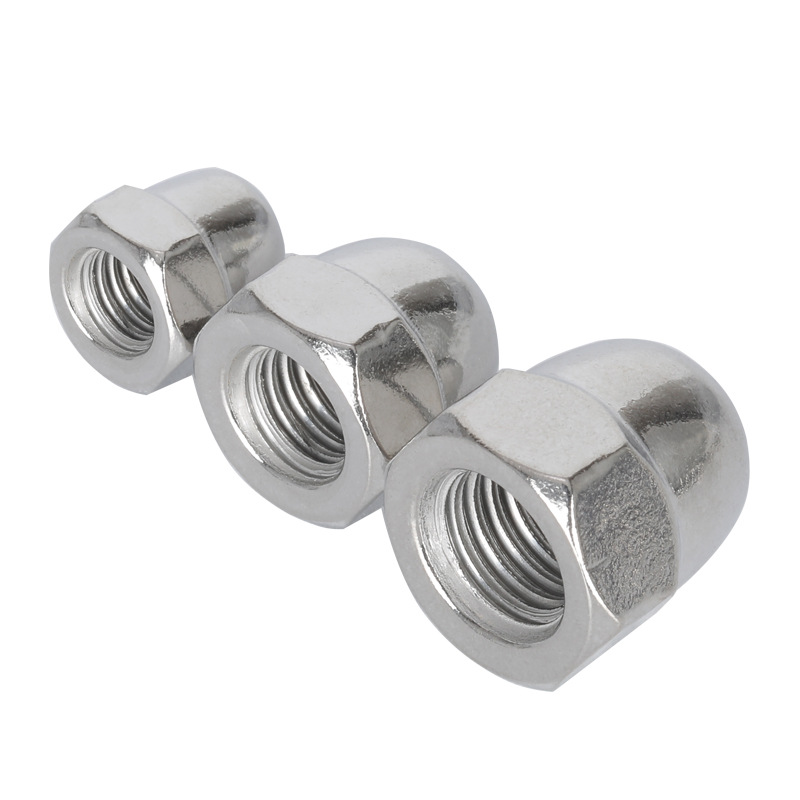

・acorn nut

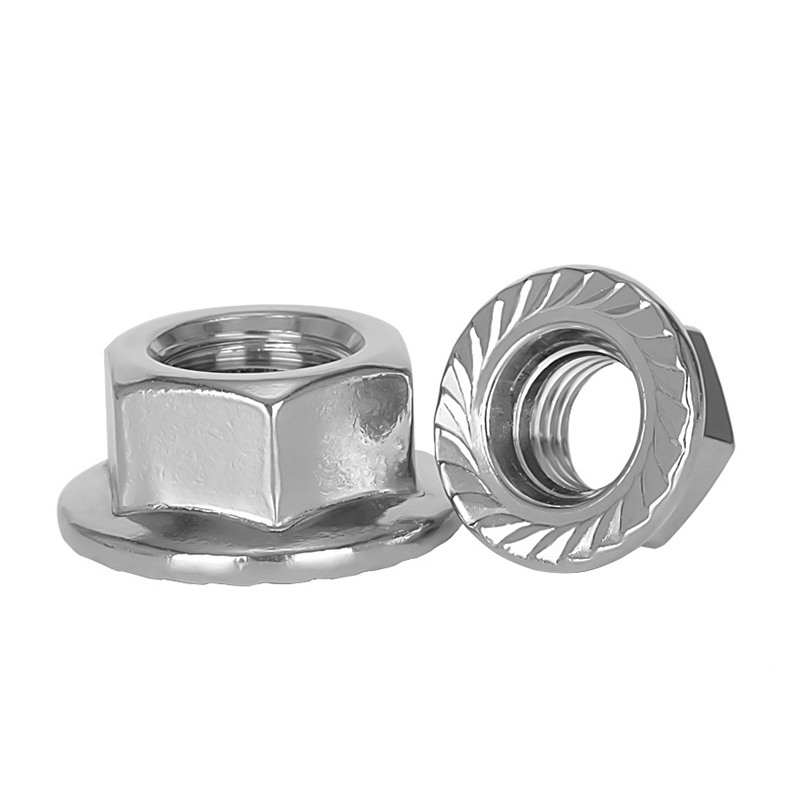

・flange nut

Material: Steel 8.8

Stainless Steel 304 / 201

Phone：+86 18851350790

Email：ttt544753@gmail.com

WhatsApp：+86 18851350790

Add：Xuzhou, China

Inquire Now

◉ PRODUCT SPECIFICATION

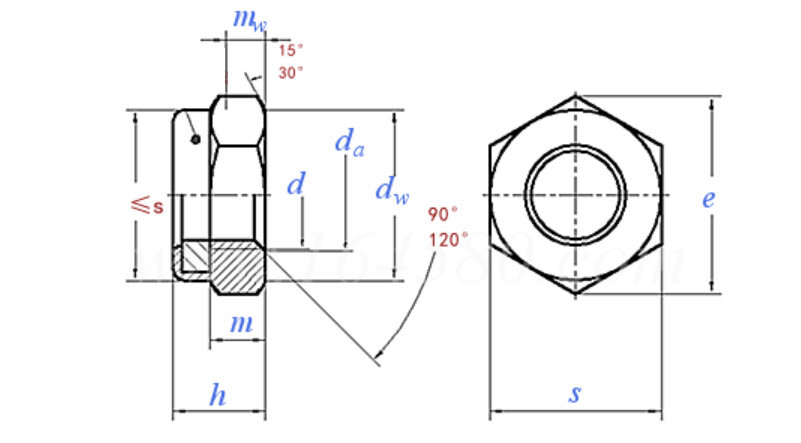

・Nylon insert lock nut--DIN 985

Thread Size d		M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18
P (Pitch)	Coarse Thread	0.5	0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5
	Fine Thread 1	/	/	/	/	/	1	1	1.5	1.5	1.5	2
	Fine Thread 2	/	/	/	/	/	/	1.25	1.25	/	/	1.5
dₐ	Minimum Value	3	4	5	6	7	8	10	12	14	16	18
dₐ	Maximum Value	3.45	4.6	5.75	6.75	7.75	8.75	10.8	13	15.1	17.3	19.5
d_w	Minimum Value	4.6	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5	24.9
e	Minimum Value	6.01	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75	29.56
h	Maximum Value = Nominal	4	5	5	6	7.5	8	10	12	14	16	18.5
h	Minimum Value	3.7	4.7	4.7	5.7	7.14	7.64	9.64	11.57	13.3	15.3	17.66
m	Minimum Value	2.4	2.9	3.2	4	4.7	5.5	6.5	8	9.5	10.5	13
m_w	Minimum Value	1.65	2.2	2.75	3.3	3.85	4.4	5.5	6.6	7.7	8.8	9.9
s	Maximum Value = Nominal	5.5	7	8	10	11	13	17	19	22	24	27
s	Minimum Value	5.32	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67	26.16
Weight per Thousand Pieces - kg		0.5	1	1.4	2.4	3	5.1	10.6	17.2	26	34	45

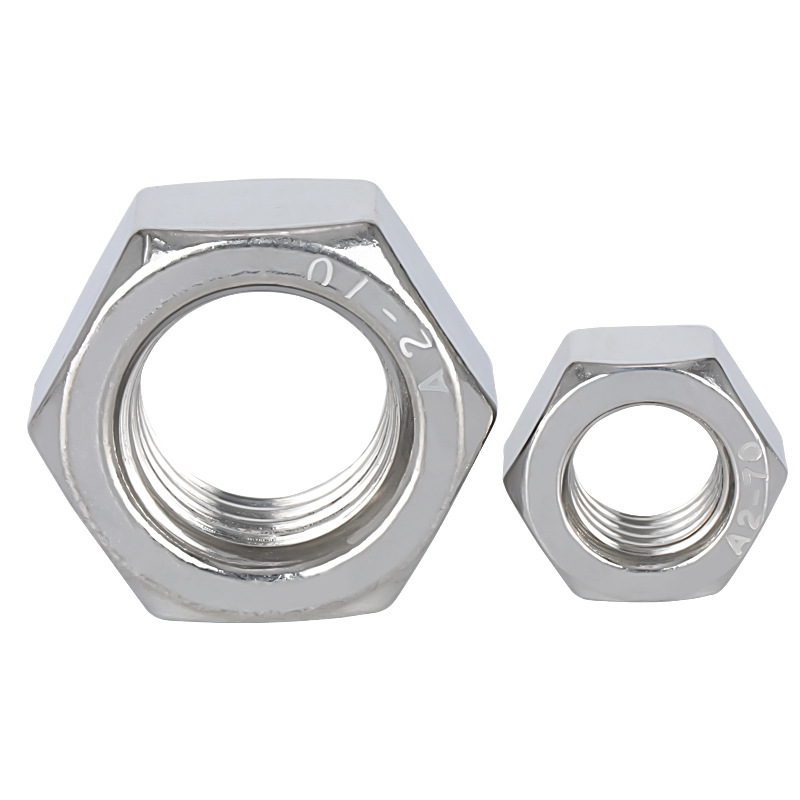

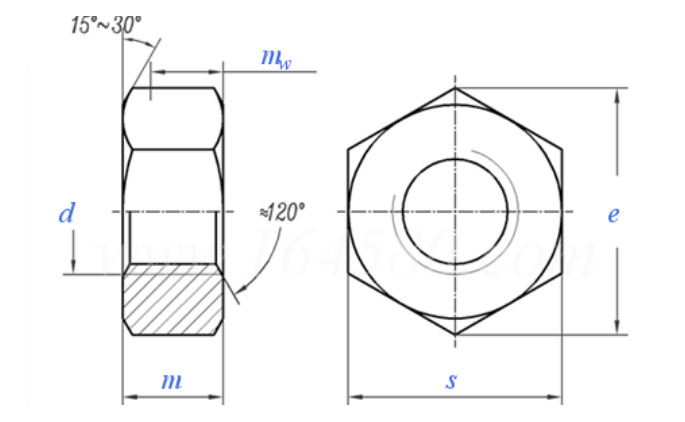

・Hex nut--DIN 934(A/B)

Thread Size d		M1	M1.2	M1.4	M1.6	(M1.7)	M2	(M2.3)	M2.5	(M2.6)	M3	(M3.5)	M4	M5	M6	(M7)	M8
P - Pitch	Coarse Thread	0.25	0.25	0.3	0.35	0.35	0.4	0.45	0.45	0.45	0.5	0.6	0.7	0.8	1	1	1.25
	Fine Thread 1	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	1
	Fine Thread 2	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/
m - Max (≈nominal) / Min	Max (≈nominal)	0.8	1	1.2	1.3	1.4	1.6	1.8	2	2	2.4	2.8	3.2	4	5	5.5	6.5
	Min	0.55	0.75	0.95	1.05	1.15	1.35	1.55	1.75	1.75	2.15	2.55	2.9	3.7	4.7	5.2	6.14
mw - Min		0.44	0.6	0.76	0.84	0.92	1.08	1.24	1.4	1.4	1.72	2.04	2.32	2.96	3.76	4.16	4.91
s - Max (≈nominal) / Min	Max (≈nominal)	2.5	3	3	3.2	3.5	4	4.5	5	5	5.5	6	7	8	10	11	13
	Min	2.4	2.9	2.9	3.02	3.38	3.82	4.32	4.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73
- Min		2.71	3.28	3.28	3.41	3.82	4.32	4.88	5.45	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38
	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Unit Weight (Steel)/kg		0.03	0.054	0.063	0.076	0.1	0.142	0.2	0.28	0.72	0.384	0.514	0.81	1.23	2.5	3.12	5.2

Thread Size d		M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48
P - Pitch	Coarse Thread	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5
	Fine Thread 1	1	1.5	1.5	1.5	1.5	2	1.5	2	2	2	2	3	3	3	3	3
	Fine Thread 2	1.25	1.25	/	/	2	1.5	2	/	/	/	/	/	/	/	/	/
m - Max (≈公称) / Min	Max (≈nominal)	8	10	11	13	15	16	18	19	22	24	26	29	31	34	36	38
	Min	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7	20.7	22.7	24.7	27.4	29.4	32.4	34.4	36.4
mw - Min		6.11	7.71	8.24	9.84	11.44	11.92	13.52	14.16	16.56	18.16	19.76	21.92	23.52	25.9	27.5	29.1
s - Max (≈公称) / Min	Max (≈nominal)	17	19	22	24	27	30	32	36	41	46	50	55	60	65	70	75
	Min	16.73	18.67	21.67	23.67	26.16	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1
- Min		18.9	21.1	24.49	26.75	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6

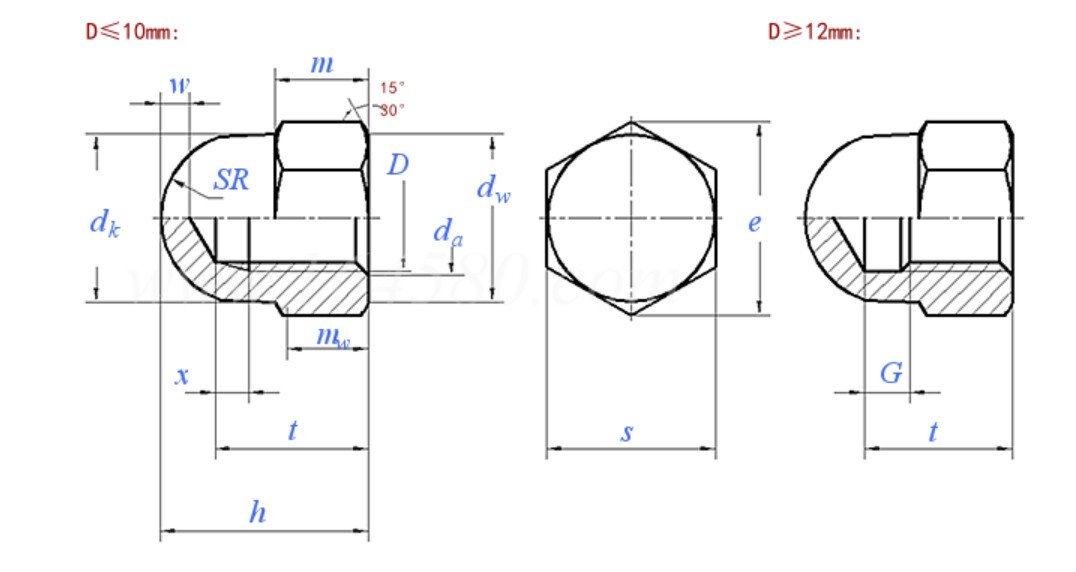

・Acorn nut--DIN 1587

Thread Specification D		M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24
P - Pitch	Coarse Thread	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
	Fine Thread 1	/	/	/	1	1.25	1.5	1.5	1.5	2	2	2	2
	Fine Thread 2	/	/	/	/	1	1.25	/	/	1.5	1.5	1.5	/
da - Max / Min	Max	4.6	5.75	6.75	8.75	10.8	13	15.1	17.3	19.5	21.6	23.7	25.9
da - Max / Min	Min	4	5	6	8	10	12	14	16	18	20	22	24
dk - Max		6.5	7.5	9.5	12.5	15	17	20	23	26	28	33	34
dw - Min		5.9	6.9	8.9	11.6	14.6	16.6	18.6	22.5	24.9	27.7	31.4	33.3
e - Class A / Class B Min	Class A	7.66	8.79	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98
e - Class A / Class B Min	Class B	7.5	8.63	10.89	14.2	17.59	19.85	22.78	26.17	29.56	32.95	37.29	39.55
x - Coarse Thread Max / Fine Thread Max	Coarse Thread	1.4	1.6	2	2.5	3	3.5	4	4	5	5	5	6
x - Coarse Thread Max / Fine Thread Max	Fine Thread	/	/	/	2	2.5	3	3	3	4	4	4	4
G - Coarse Thread Max / Fine Thread Max	Coarse Thread	2.75	3	3.7	4.9	5.6	6.4	7.3	7.3	9.3	9.3	9.3	10.7
G - Coarse Thread Max / Fine Thread Max	Fine Thread	/	/	/	3.7	4.9	5.6	5.6	5.6	7.3	7.3	7.3	7.3
h - Max (≈nominal) / Class A Min / Class B Min	Max (≈nominal)	8	10	12	15	18	22	25	28	32	34	39	42
	Class A Min	7.64	9.64	11.57	14.57	17.57	21.48	24.48	27.48	31.38	33.38	38.38	41.38
	Class B Min	7.42	9.42	11.3	14.3	17.3	21.16	24.16	27.16	31	33	38	41
m - Max / Min	Max	3.2	4.2	5	6.5	8	10	11	13	15	16	18	19
	Min	2.9	3.7	4.7	6.14	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7
mw - Min		2.32	2.96	3.76	4.91	6.11	7.71	8.24	9.84	11.44	11.92	13.52	14.16
SR -		3.25	3.75	4.75	6.25	7.5	8.5	10	11.5	13	14	16.5	17
s - Max (≈nominal) / Class A Min / Class B Min	Max (≈nominal)	7	8	10	13	16	18	21	24	27	30	34	36
	Class A Min	6.78	7.78	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38
	Class B Min	6.64	7.64	9.64	12.57	15.57	17.57	20.16	23.16	26.16	29.16	33	35
t - Max / Min	Max	5.74	7.79	8.29	11.35	13.35	16.35	18.35	21.42	25.42	28.42	29.42	31.5
	Min	5.26	7.21	7.71	10.65	12.65	15.65	17.65	20.58	24.58	25.58	28.58	30.5
w - Min		2	2	2	2	2	3	4	4	5	5	5	6
Unit Weight/kg - Coarse Thread / Fine Thread	Coarse Thread	1.5	2.2	4.6	8.9	20.1	28.3	39.7	54.3	79.1	104	/	216
	Fine Thread	/	/	/	11	20.1	28.3	39.7	54.3	95	104	/	216

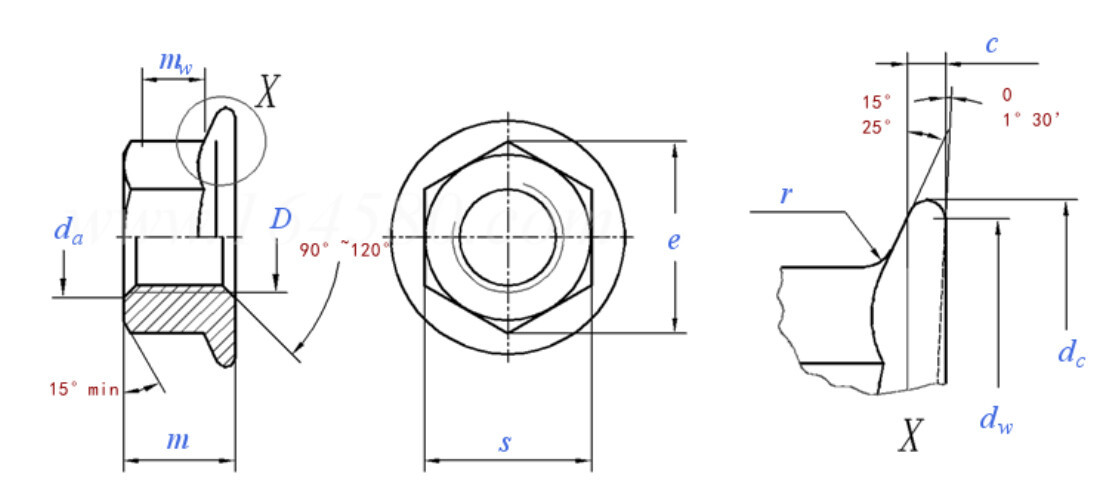

・Flange nut--DIN 6923

Thread Specification D		M5	M6	M8	M10	M12	M14	M16	M20
P - Pitch	Coarse Thread	0.8	1	1.25	1.5	1.75	2	2	2.5
	Fine Thread 1	/	/	1	1.25	1.5	1.5	1.5	1.5
	Fine Thread 2	/	/	/	(1.0)	(1.25)	/	/	/
c - Min		1	1.1	1.2	1.5	1.8	2.1	2.4	3
da - Min		5	6	8	10	12	14	16	20
da - Max		5.75	6.75	8.75	10.8	13	15.1	17.3	21.6
dc - Max		11.8	14.2	17.9	21.8	26	29.9	34.5	42.8
dw - Min		9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
e - Min		8.79	11.05	14.38	16.64	20.03	23.36	26.75	32.95
m - Max		5	6	8	10	12	14	16	20
m - Min		4.7	5.7	7.6	9.6	11.6	13.3	15.3	18.9
mw - Min		2.2	3.1	4.5	5.5	6.7	7.8	9	11.1
s - Max (≈nominal)		8	10	13	15	18	21	24	30
s - Min		7.78	9.78	12.73	14.73	17.73	20.67	23.67	29.67
r - Max		0.3	0.36	0.48	0.6	0.72	0.88	0.96	1.2

*This is the measurement result of a single batch of products. A tolerance of ±2 - 3mm is allowed. For the specific dimensions, please refer to the actual measurement of the physical product.

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.

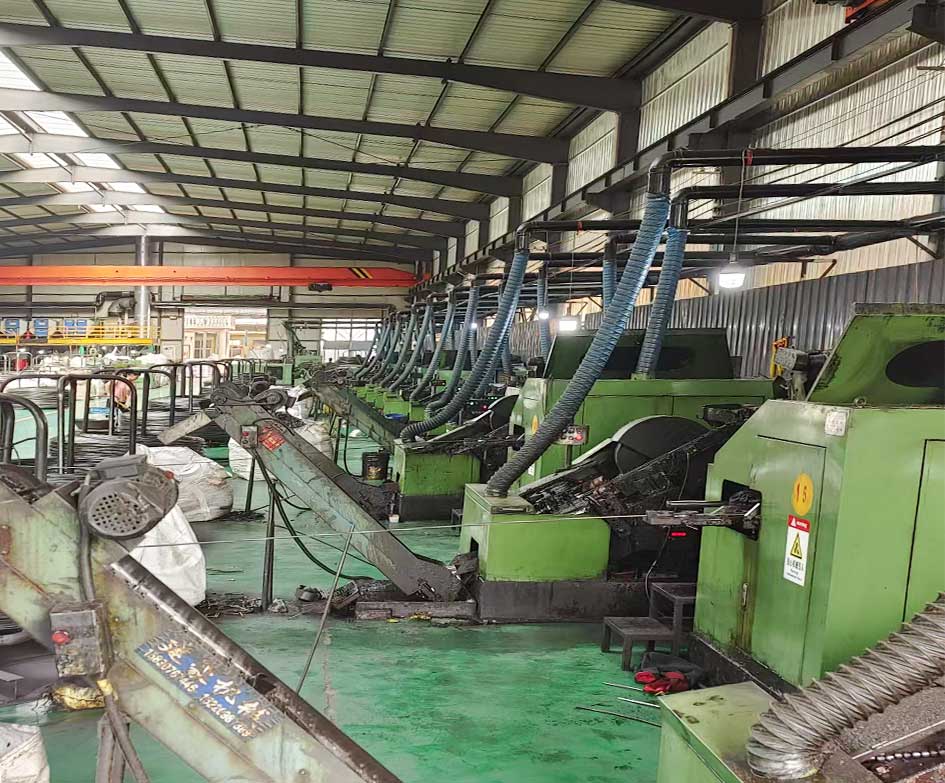

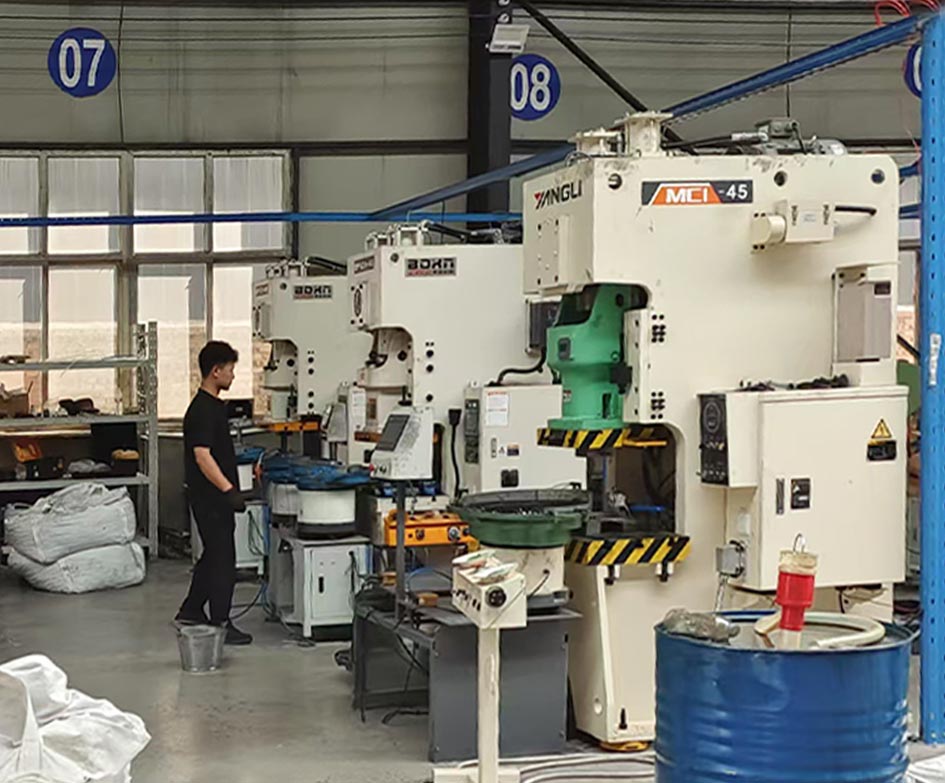

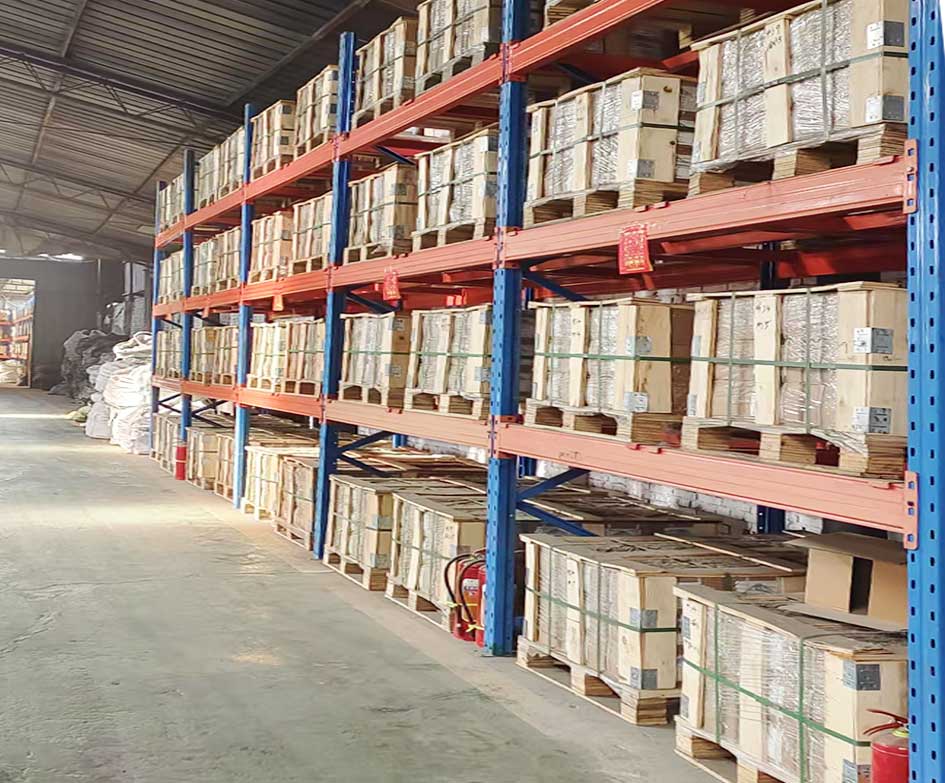

◉ PRODUCTION AND WAREHOUSING
