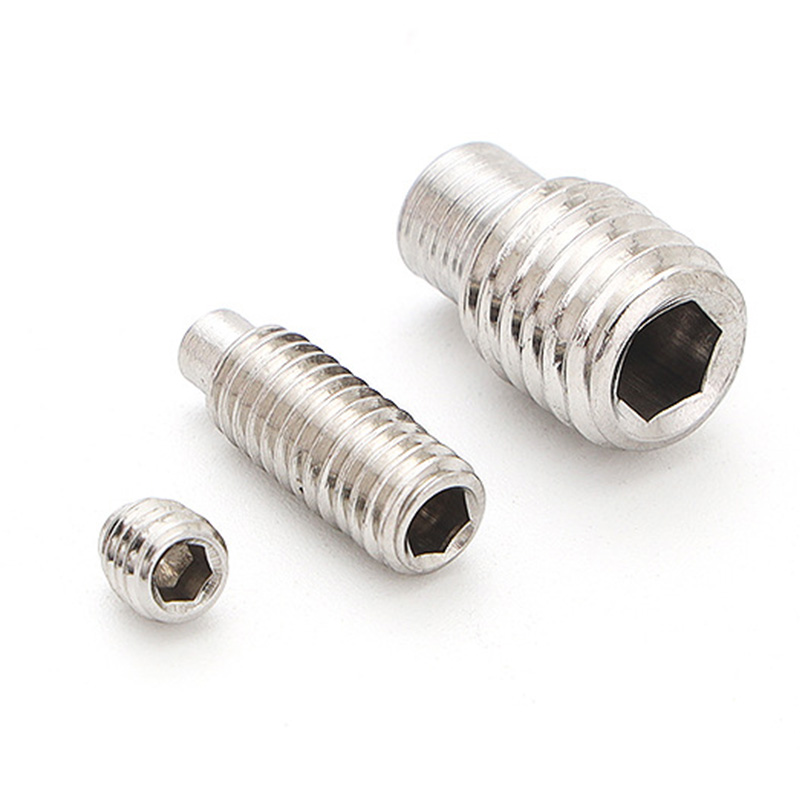

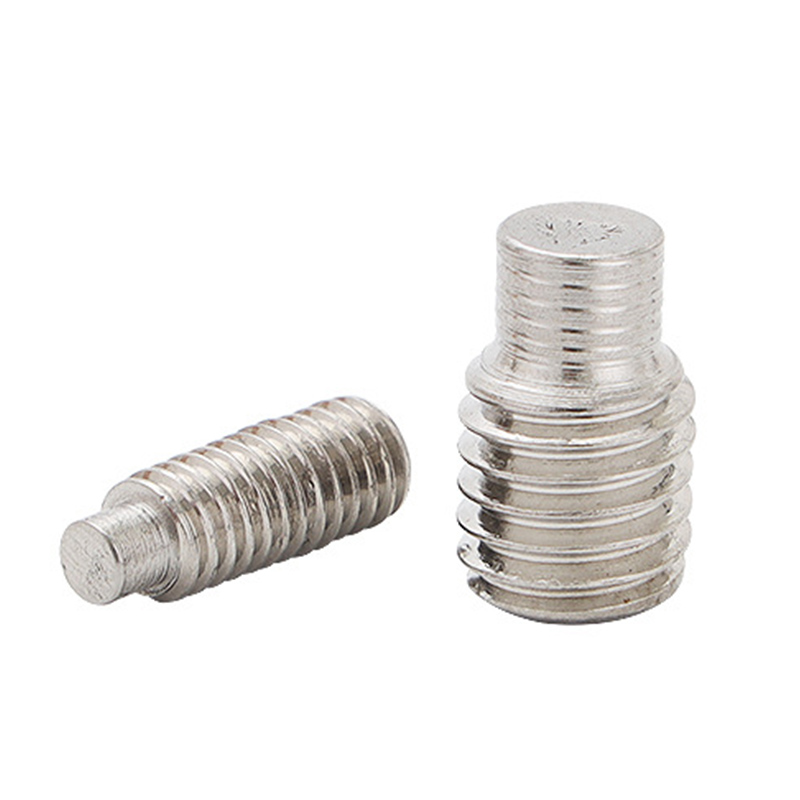

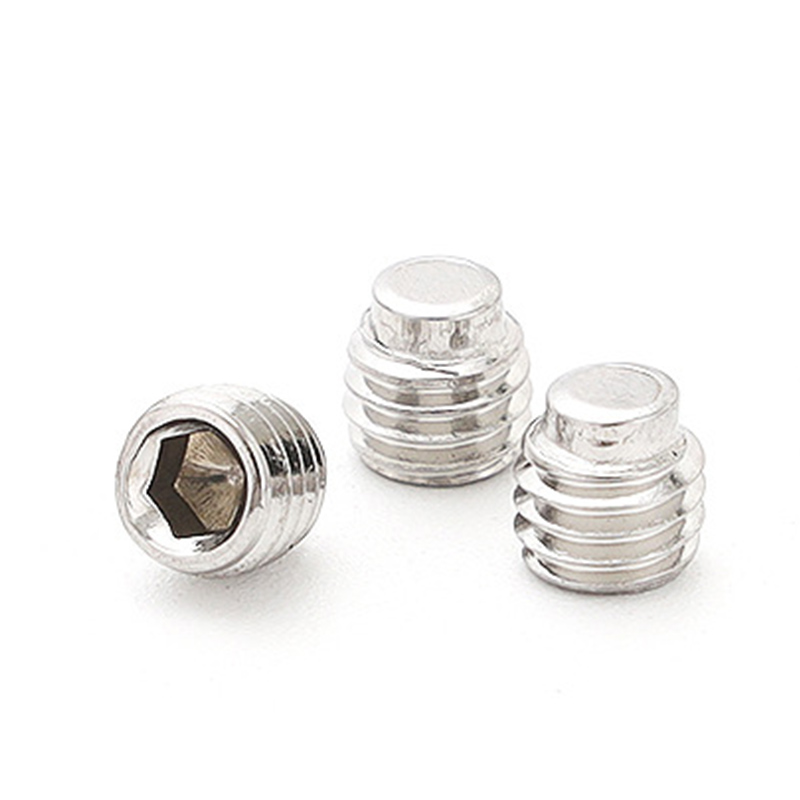

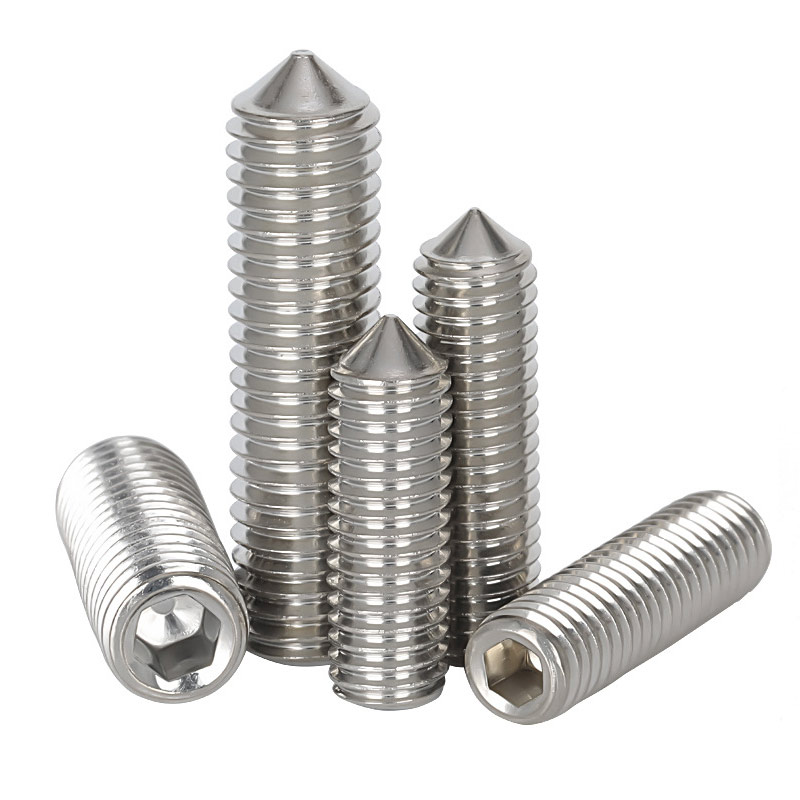

Port bolts
・cup point
・set screw with flat point
・convex point
・set screw with cone point
Material: Steel 8.8

Stainless Steel 304 / 201

Phone：+86 18851350790
Email：ttt544753@gmail.com
WhatsApp：+86 18851350790
Add：Xuzhou, China
Inquire Now

◉ PRODUCT SPECIFICATION

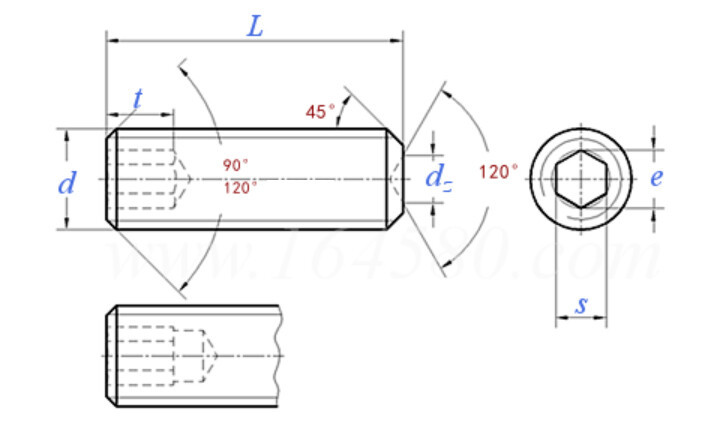

・Cup point--DIN EN ISO 4029

ao01

DescriptionM1.6M2M2.5M3M4M5M6M8M10M12M16M20M24
Thread Size dM1.6M2M2.5M3M4M5M6M8M10M12M16M20M24
Pitch (Pitch)0.350.40.450.50.70.811.251.51.7522.53
Top Diameter dz (Top)0.801.001.201.402.002.503.005.06.08.00101416
Top Diameter dz (Light)0.550.750.951.151.752.252.754.75.77.649.6413.5715.57
Diameter (Nominal)0.70.91.31.522.5345681012
Diameter (Top)0.7240.9131.31.582.082.583.084.0955.146.148.17510.17512.212
Diameter (Light)0.710.8871.2751.522.022.523.024.025.026.028.02510.02512.032
Head Dimensions (Light)0.70.81.21.21.522344.86.4810
Head Dimensions (Short Screw)0.70.81.21.21.522344.86.4810
Head Dimensions (Long Screw)1.51.7222.533.5568101215
Width Across Flats e (Light)0.8091.0111.4541.7332.3032.8733.4434.5835.7236.8639.14911.42913.716
Nominal Length L₀ (Nominal)22.53455681012162025



*This is the measurement result of a single batch of products. A tolerance of ±2 - 3mm is allowed. For the specific dimensions, please refer to the actual measurement of the physical product.

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
