Rivet bolts

PRODUCT

MESSAGE

If you have any questions, please contact us and we will contact you as soon as possible.

Rivet bolts

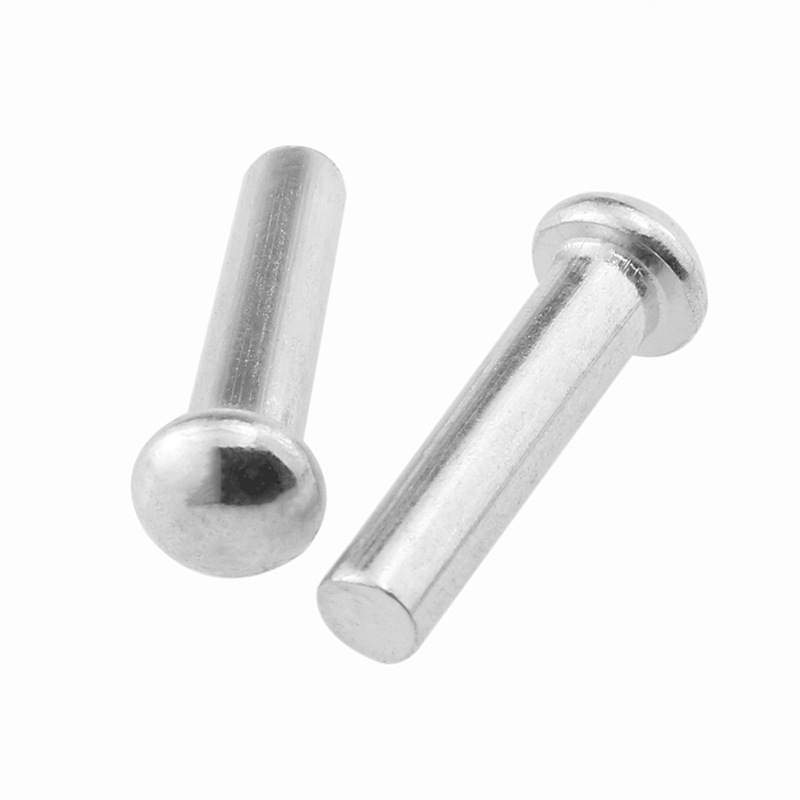

・round head rivet
・flat head rivet
・round head rivet

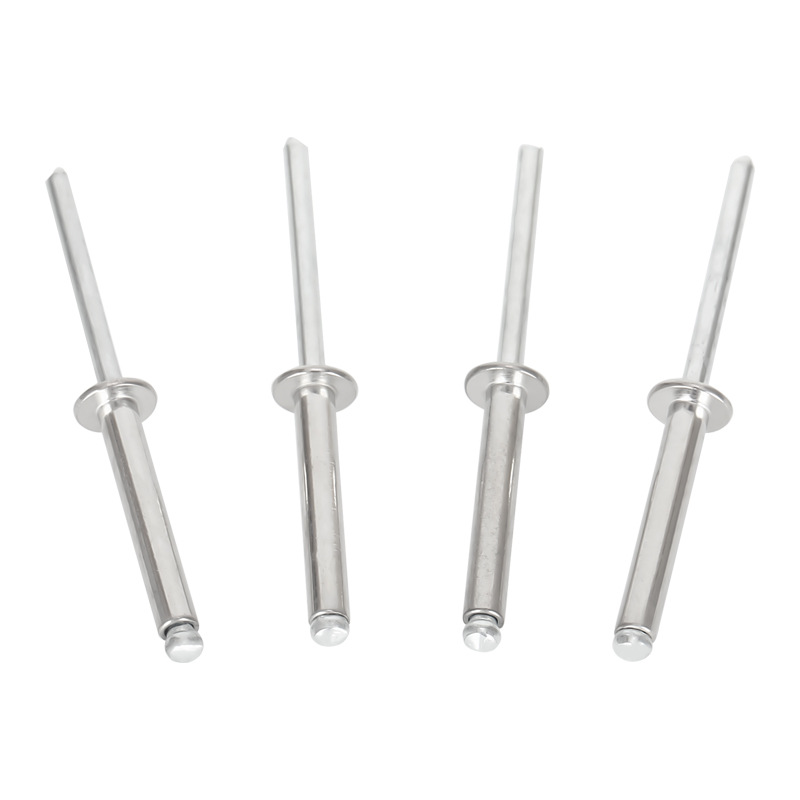

・blind rivet

Material: Steel 8.8

Stainless Steel 304 / 201

Phone：+86 18851350790

Email：ttt544753@gmail.com

WhatsApp：+86 18851350790

Add：Xuzhou, China

Inquire Now

◉ PRODUCT SPECIFICATION

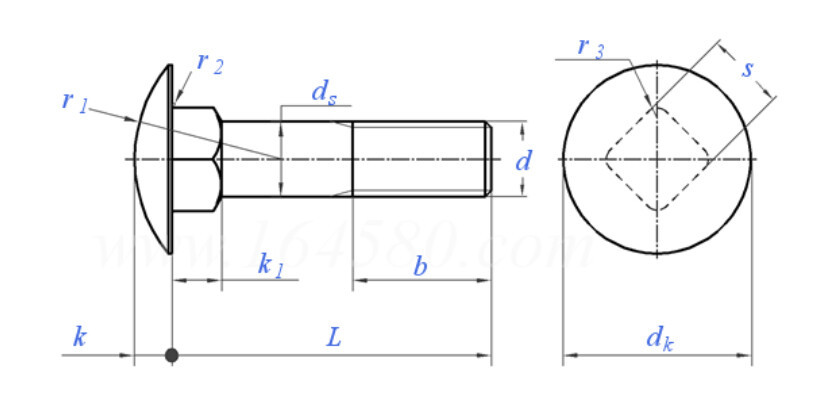

・Round head rivet--DIN 603

Thread Size d		M5	M6	M8	M10	M12	M16	M20
P Pitch		0.8	1	1.25	1.5	1.75	2	2.5
b	L≤125	16	18	22	26	30	38	46
	125	22	24	28	32	36	44	52
	L>200	/	/	41	45	49	57	65
dk	Maximum Value	13.55	16.55	20.65	24.65	30.65	38.8	46.8
dk	Minimum Value	12.45	15.45	19.35	23.35	29.35	37.2	45.2
ds	Maximum Value	5	6	8	10	12	16	20
ds	Minimum Value	4.52	5.52	7.42	9.42	11.3	15.3	19.16
k1	Maximum Value	4.1	4.6	5.6	6.6	8.75	12.9	15.9
k1	Minimum Value	2.9	3.4	4.4	5.4	7.25	11.1	14.1
k	Maximum Value	3.3	3.88	4.88	5.38	6.95	8.95	11.05
k	Minimum Value	2.7	3.12	4.12	4.62	6.05	8.05	9.95
r1≈		10.7	12.6	16	19.2	24.1	29.3	33.9
r2Maximum Value		0.5	0.5	0.5	0.5	1	1	1
r3Maximum Value		0.75	0.9	1.2	1.5	1.8	2.4	3
s	Maximum Value	5.48	6.48	8.58	10.58	12.7	16.7	20.84
s	Minimum Value	4.52	5.52	7.42	9.42	11.3	15.3	19.16

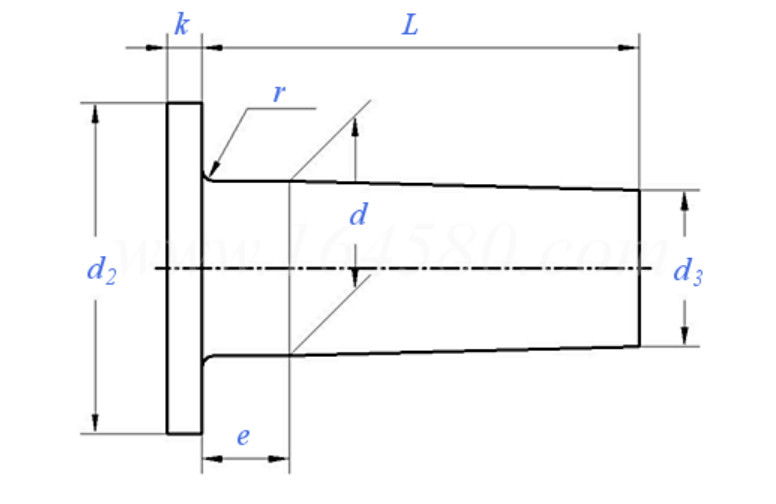

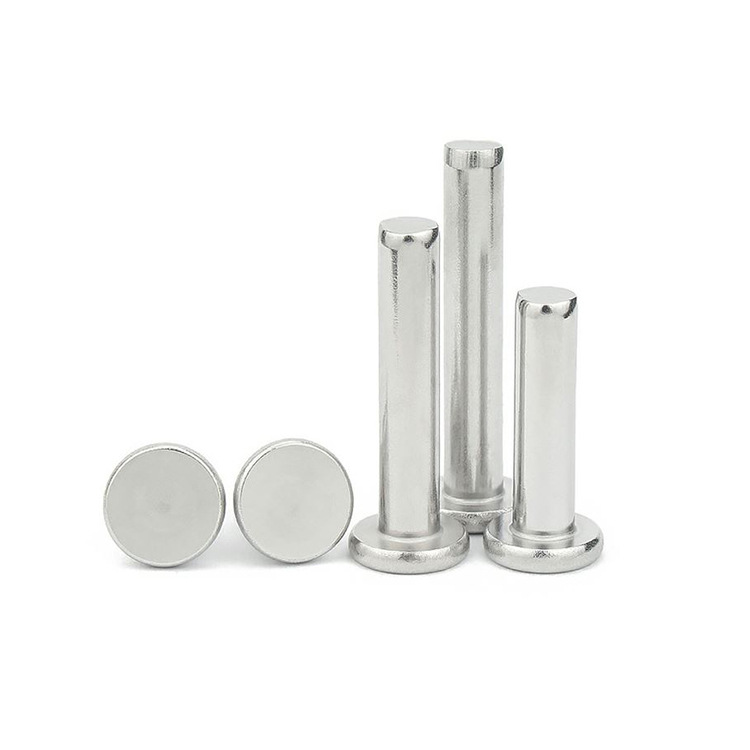

・Flat head rivet--DIN 7338

Nominal Diameter d		3	4	5	6	8	10
d (h13)	Maximum Value = Nominal	3	4	5	6	8	10
	Minimum Value	2.86	3.82	4.82	5.82	7.78	9.78
d2	Maximum Value = Nominal	5.50	7.50	9.50	11.50	15.50	18.00
	Minimum Value	5.20	6.92	8.92	10.80	14.80	17.30
d3Minimum Value		2.85	3.80	4.80	5.80	7.75	9.75
e Maximum Value		1.5	2	2.5	3	4	5
k	Maximum Value = Nominal	0.8	1	1	1.2	1.2	1.4
	Minimum Value	0.6	0.8	0.8	1	1	1.2
r Maximum Value		0.2	0.3	0.3	0.4	0.4	0.6

*This is the measurement result of a single batch of products. A tolerance of ±2 - 3mm is allowed. For the specific dimensions, please refer to the actual measurement of the physical product.

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
