Bolt-type bolts

PRODUCT

MESSAGE

If you have any questions, please contact us and we will contact you as soon as possible.

Bolt-type bolts

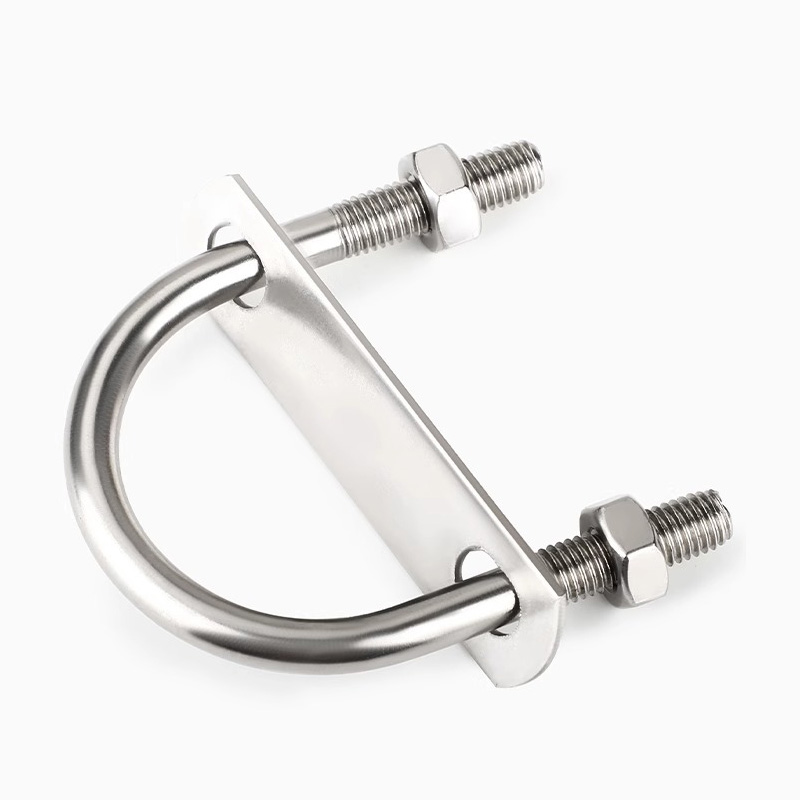

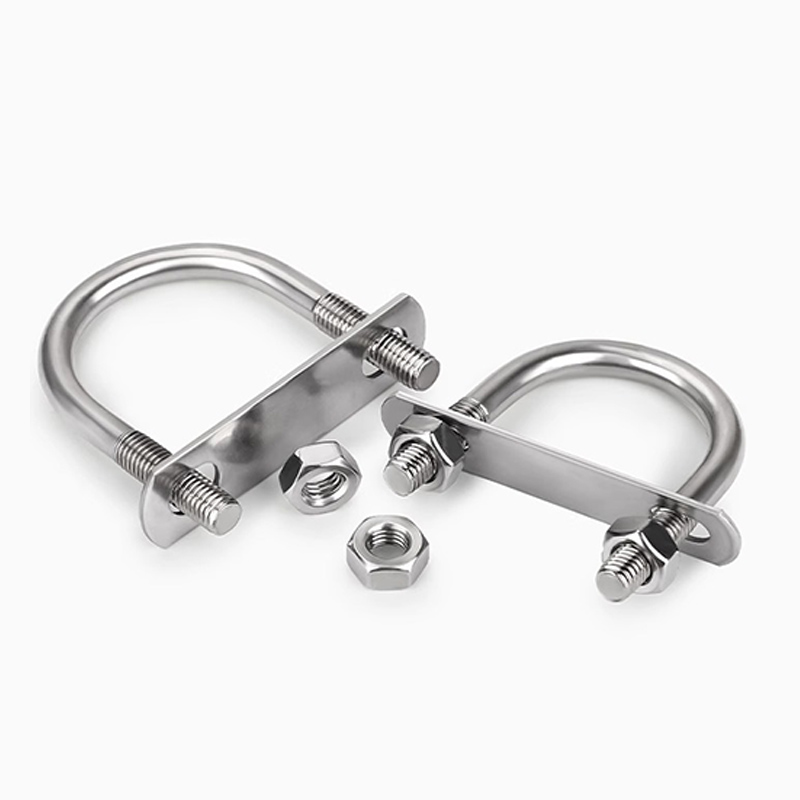

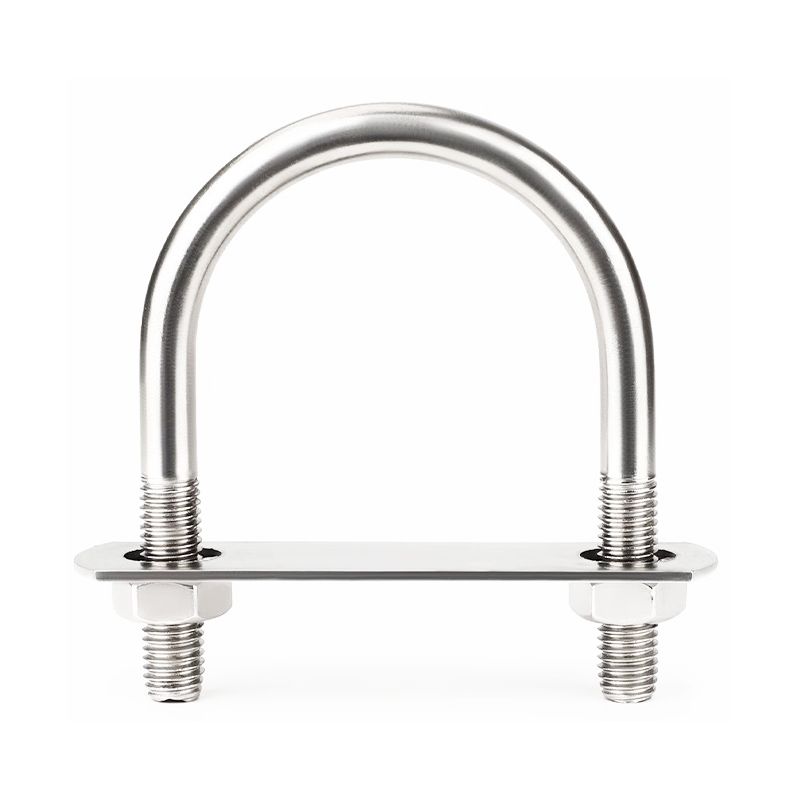

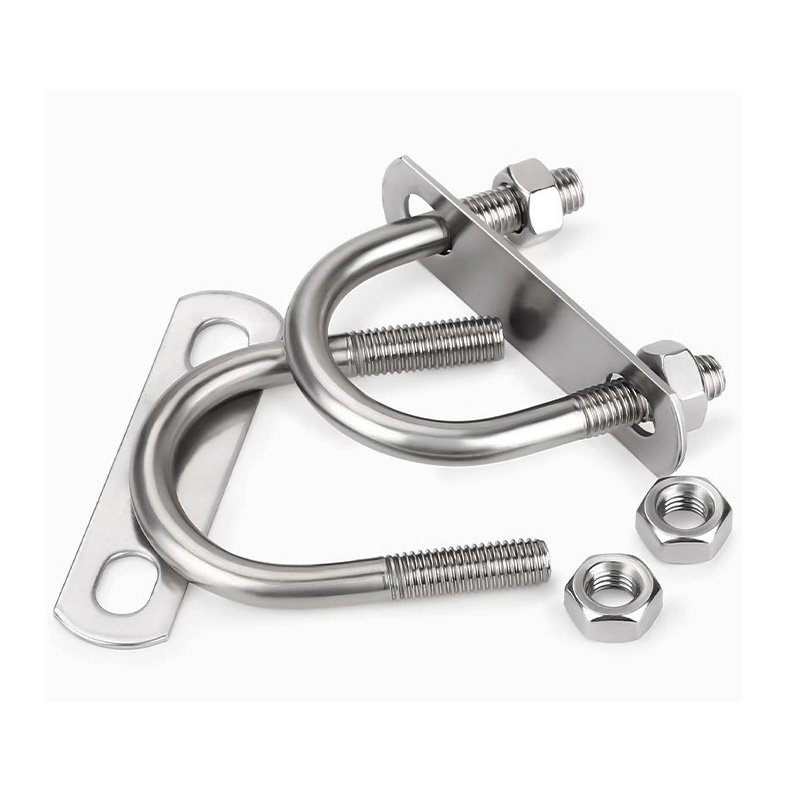

・U-bolt

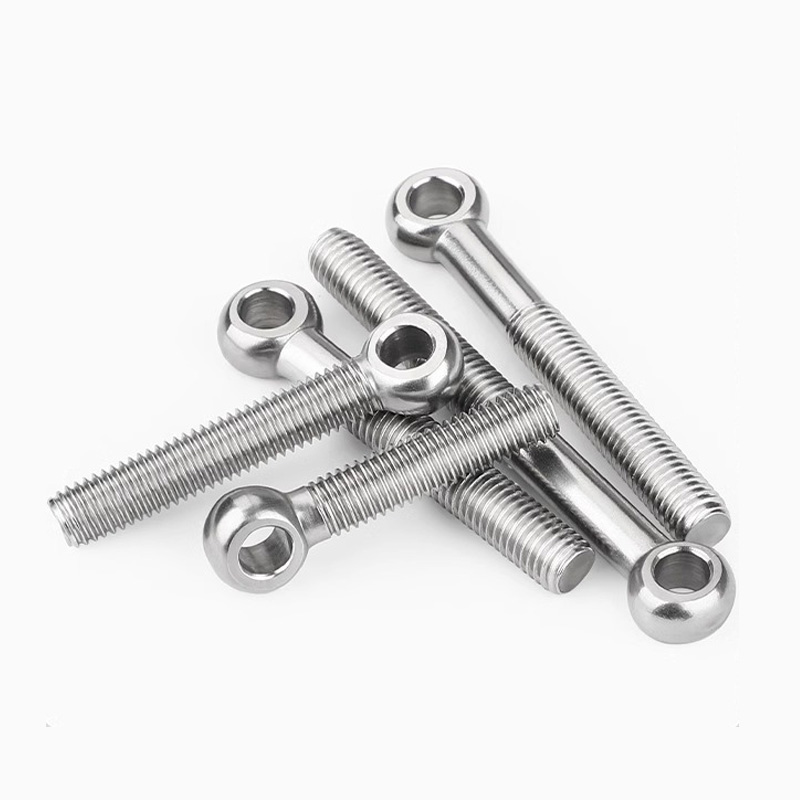

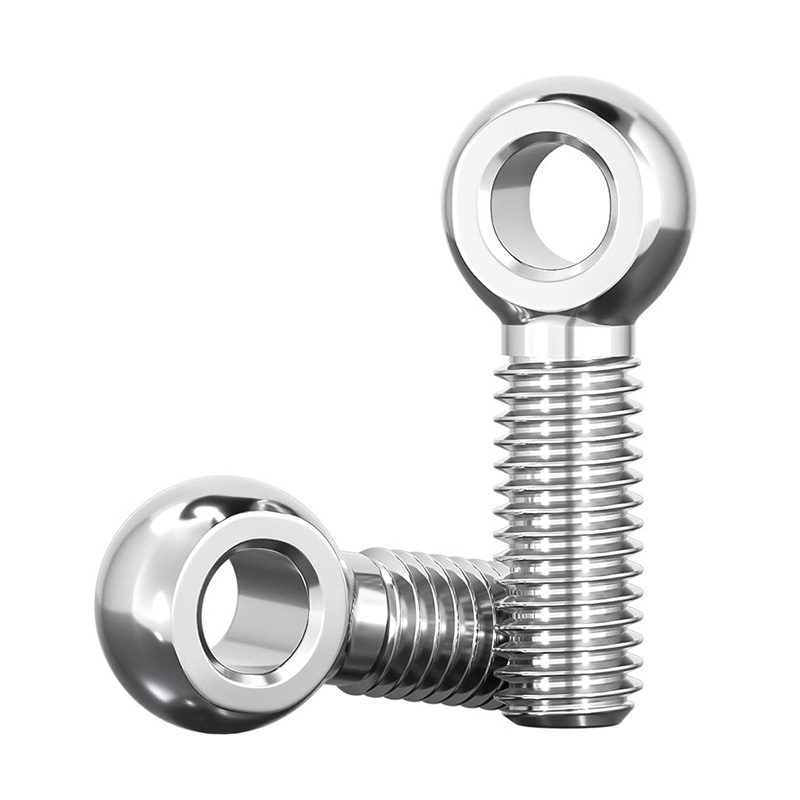

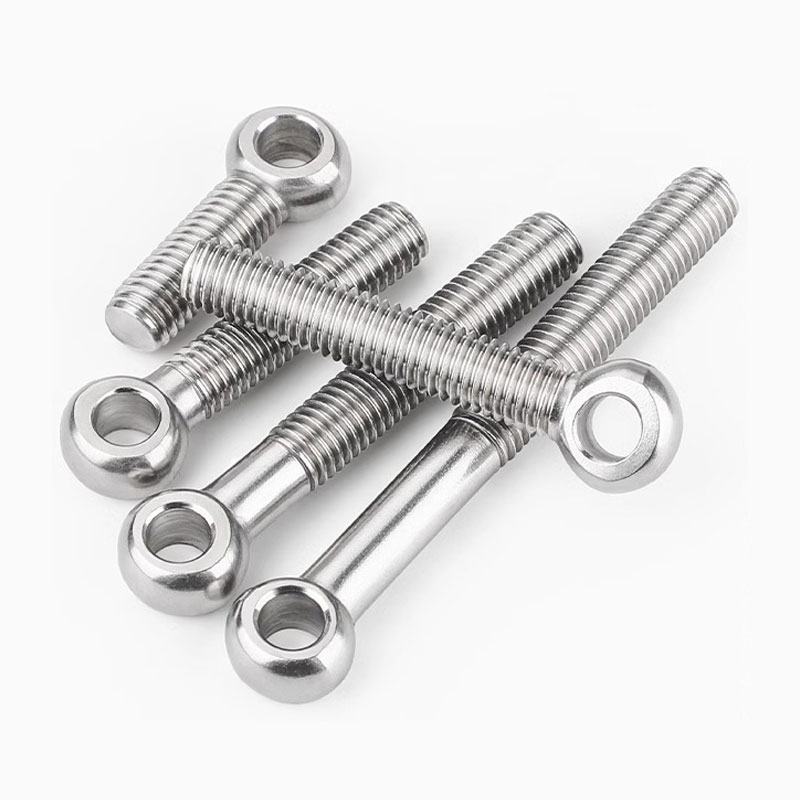

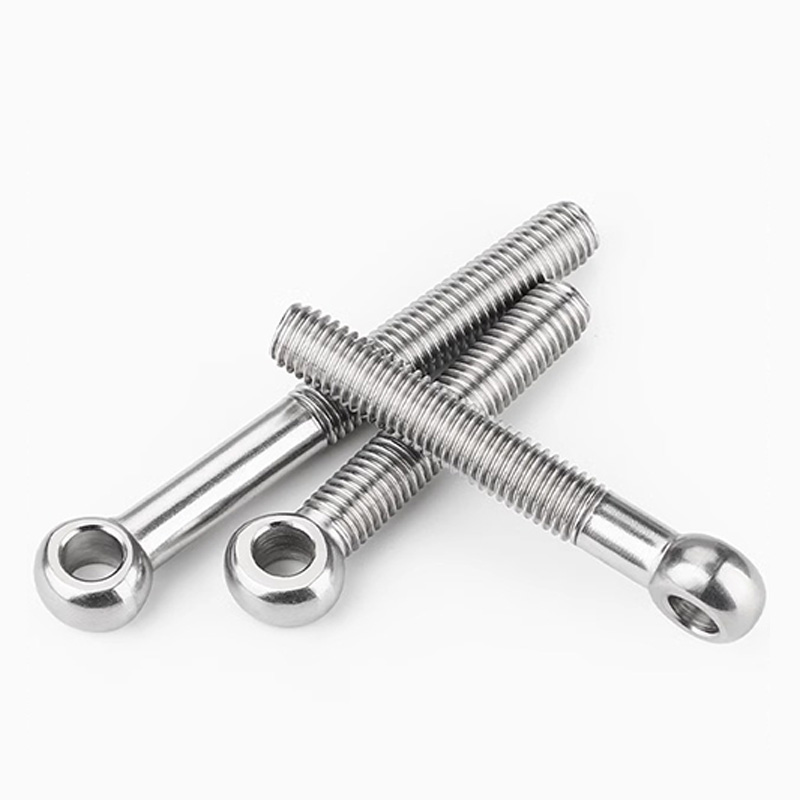

・eye bolt

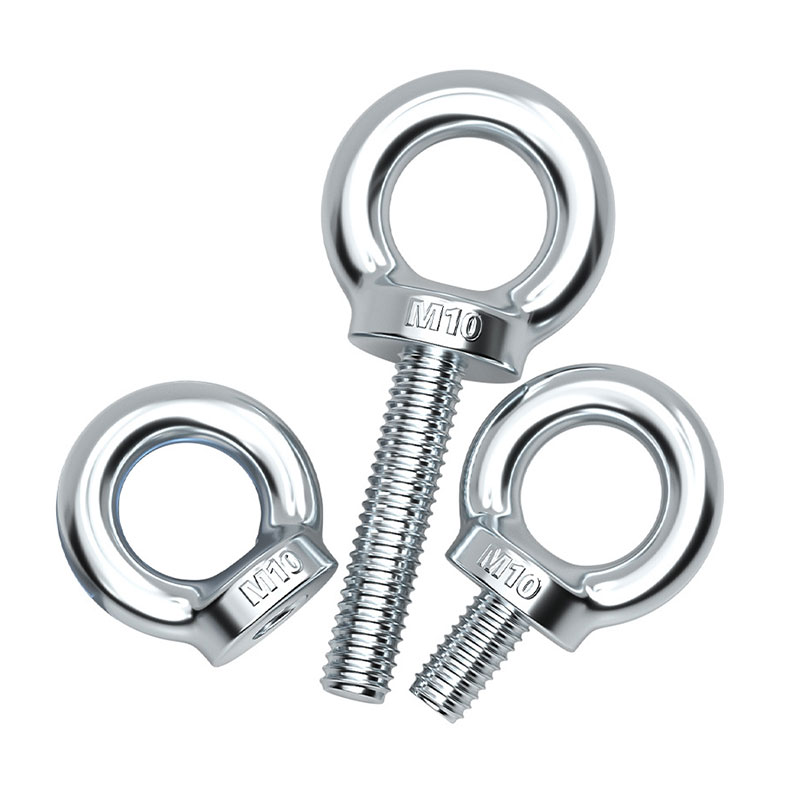

・lifting eye bolt

Material: Steel 8.8

Stainless Steel 304 / 201

Phone：+86 18851350790

Email：ttt544753@gmail.com

WhatsApp：+86 18851350790

Add：Xuzhou, China

Inquire Now

◉ PRODUCT SPECIFICATION

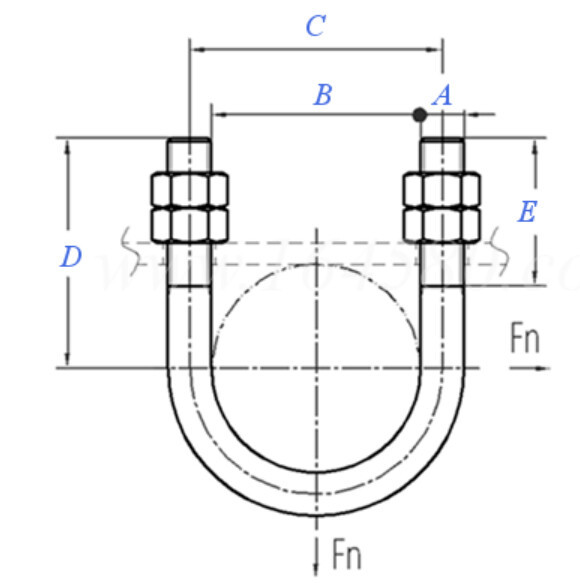

・U-Bolt--HG /T 21629 (A1) - 2021

Nominal Pipe Diameter	15	20	25	32	40	50	65	80	90	100	125	150	200	250
A	M6	M6	M6	M10	M10	M10	M12	M12	M12	M12	M12	M16	M16	M20
B	27	33	39	48	54	66	79	95	108	120	147	174	225	279
C	33	39	45	58	64	76	91	107	120	132	159	190	241	299
D	70	70	70	75	75	85	95	100	115	115	130	155	180	215
E	65	65	65	65	65	70	80	80	80	80	80	95	95	110
Unit Weight: kg	0.05	0.05	0.05	0.13	0.14	0.15	0.32	0.35	0.38	0.41	0.47	0.91	1	2.2

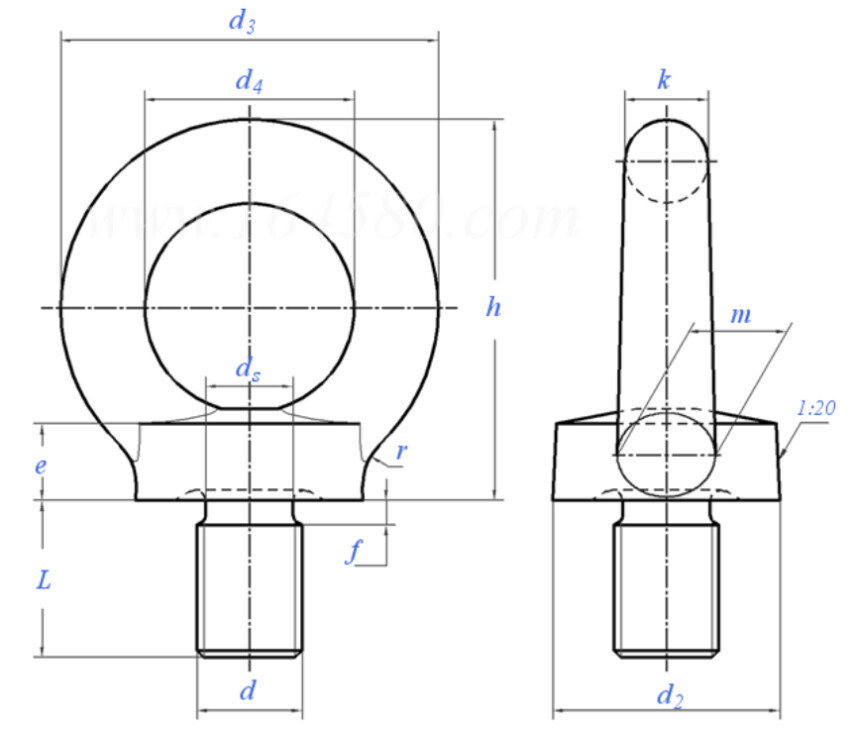

・Lifting Eye Bolt--DIN 580

Thread Size d		M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33
d2	Nominal	20.0	20.0	25.0	30.0	35.0	35.0	40.0	40.0	50.0	50.0	65.0	65.0	75.0
	Minimum	19.5	19.5	24.5	29.5	34.5	34.5	39.5	39.5	49.4	49.4	64.3	64.3	74.3
	Maximum	20.9	20.9	25.9	30.9	36.1	36.1	41.1	41.1	51.2	51.2	66.3	66.3	76.5
d3	Nominal	36.0	36.0	45.0	54.0	63.0	63.0	72.0	72.0	90.0	90.0	108.0	108.0	126.0
	Minimum	35.5	35.5	44.5	53.5	62.5	62.5	71.5	71.5	89.4	89.4	107.3	107.3	125.2
	Maximum	37.1	37.1	46.1	55.1	64.1	64.1	73.1	73.1	91.2	91.2	109.5	109.5	127.7
d4	Nominal	20.0	20.0	25.0	30.0	35.0	35.0	40.0	40.0	50.0	50.0	60.0	60.0	70.0
	Minimum	19.1	19.1	24.1	29.1	33.9	33.9	38.9	38.9	48.8	48.8	58.7	58.7	68.5
	Maximum	20.5	20.5	25.5	30.5	35.5	35.5	40.5	40.5	50.6	50.6	60.7	60.7	70.7
e	Nominal	6	6	8	10	12	12	14	14	18	18	22	22	26
	Minimum	5.5	5.5	7.5	9.5	11.5	11.5	13.5	13.5	17.5	17.5	21.4	21.4	26.3
	Maximum	6.9	6.9	8.9	10.9	12.9	12.9	14.9	14.9	19.1	19.1	23.2	23.2	27.3
f		2.5	2.5	3	3.5	4	4	5	5	6	6	7	7	8
da（Max of rounded fillet）		4.4	6.0	7.7	9.4	11.0	13.0	14.4	16.4	18.4	19.6	22.6	25.0	28.0
	Minimum	4.22	5.82	7.48	9.18	10.73	12.73	14.13	16.13	18.07	19.27	22.29	24.67	27.61
h	Nominal	36	36	45	53	62	62	71	71	90	90	109	109	128
	Minimum	35.5	35.5	44.5	52.5	61.5	61.5	70.5	70.5	89.4	89.4	108.3	108.3	127.2
	Maximum	37.1	37.1	46.1	54.1	63.1	63.1	72.1	72.1	91.2	91.2	110.5	110.5	128.7
k	Nominal	8.0	8.0	10.0	12.0	14.0	14.0	16.0	16.0	20.0	20.0	24.0	24.0	28.0
	Minimum	7.5	7.5	9.5	11.5	13.5	13.5	15.5	15.5	19.5	19.5	23.4	23.4	27.3
	Maximum	8.9	8.9	10.9	12.9	14.9	14.9	16.9	16.9	21.1	21.1	25.2	25.2	29.3
L（Nominal for bolt）		13.0	13.0	17.0	20.5	27.0	27.0	30.0	30.0	36.0	36.0	45.0	45.0	54.0
	Minimum	12.65	12.65	16.65	20.08	26.58	26.58	29.58	29.58	35.5	35.5	44.5	44.5	53.5
	Maximum	13.35	13.35	17.35	20.92	27.42	27.42	30.42	30.42	36.5	36.5	45.5	45.5	54.5
m	Nominal	10	10	12	14	16	16	19	19	24	24	28	28	32
	Minimum	9.5	9.5	11.5	13.5	15.5	15.5	18.5	18.5	23.5	23.5	27.4	27.4	31.3
	Maximum	10.9	10.9	12.9	14.9	16.9	16.9	19.9	19.9	25.1	25.1	29.2	29.2	33.3
r		4	4	4	6	6	6	8	8	12	12	15	15	18
Stress Area（Approx.）		0.057	0.06	0.11	0.18	0.27	0.28	0.438	0.45	0.73	0.74	1.62	1.66	2.6

*This is the measurement result of a single batch of products. A tolerance of ±2 - 3mm is allowed. For the specific dimensions, please refer to the actual measurement of the physical product.

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
