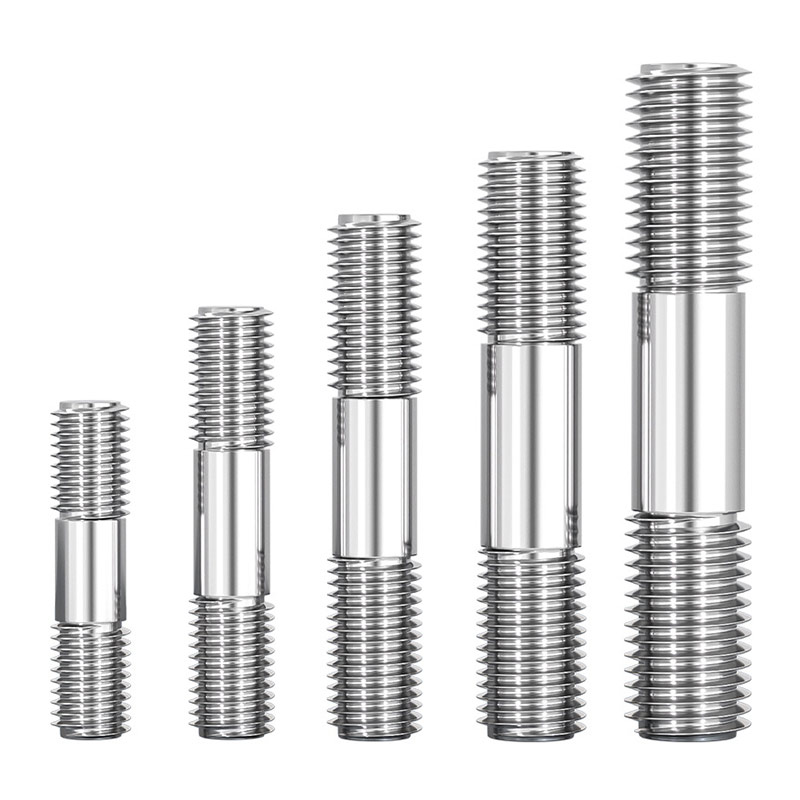

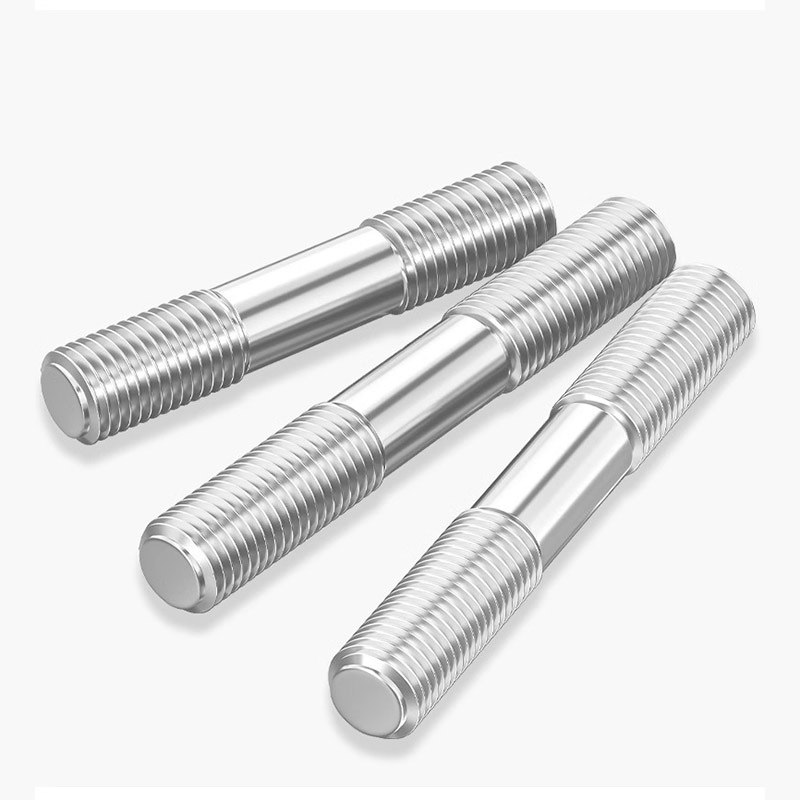

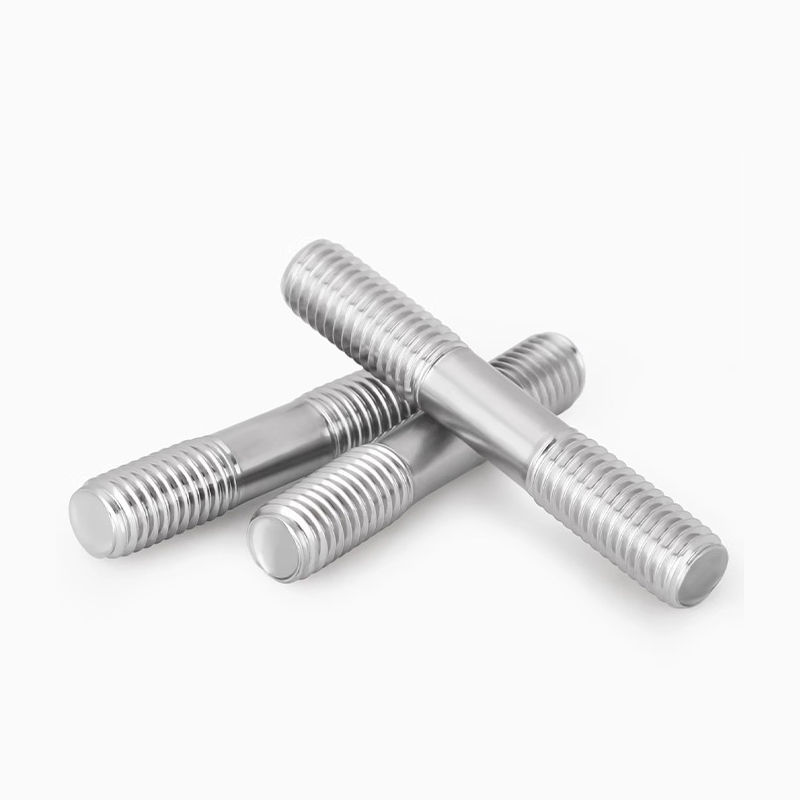

Lead screw bolts

・full thread rod+threaded rod
・double end threaded rod stud bolt

Material: Steel 8.8

Stainless Steel 304 / 201

Phone：+86 18851350790

Email：ttt544753@gmail.com

WhatsApp：+86 18851350790

Add：Xuzhou, China

Inquire Now

◉ PRODUCT SPECIFICATION

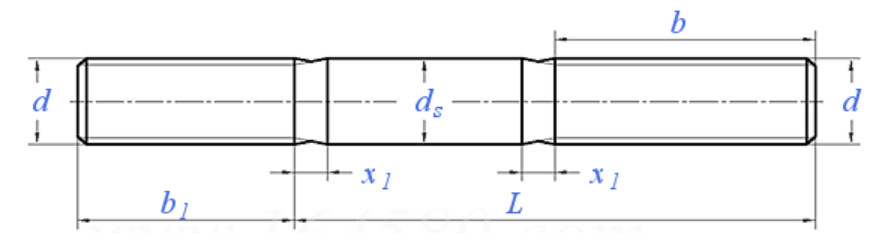

・Double end threaded rod stud bolt--DIN 940

Thread Size d	Category	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24
Pitch P	Coarse Thread	0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
	Fine Thread 1	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5	1.5	1.5	2
	Fine Thread 2	-	-	-	-	-	-	1.5	-	-	-	-	-	-
b1		10	13	15	18	20	25	30	35	40	45	50	55	60
Length b	L≤125	14	16	18	20	22	26	30	34	38	42	46	50	54
	125	20	22	24	26	28	32	36	40	44	48	52	56	60
	L>200	-	-	-	-	-	45	49	53	57	61	65	69	73
Approx. Weight per 1,000 pcs (Steel) ≈ kg		-	-	-	-	-	-	-	-	-	-	-	-	-

*This is the measurement result of a single batch of products. A tolerance of ±2 - 3mm is allowed. For the specific dimensions, please refer to the actual measurement of the physical product.

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
